Speaker for BM800

4 replies
Hi, The speaker seems special in the Beomaster 800, it has a 50R resistor built-in and is hard to find a replacement for. I have a BM800 where one of the speakers are dead (infinite ohm across coil), so either I find a BM800 I can take the speaker from or I find an ordinary speaker (e.g. 4 or 8ohm) and add a series resistor to it. Do any of you know where to find a replacement speaker (it is 13cm wide and 7,5cm height). I have also tried to see if other Beomaster have the same speaker, but cannot find any - or have I overlooked something? /Pindsen

Location: Denmark

@Pips NYT Hi Pindsen, can you post a close-up photo of the speaker (front and back) and a photo of the inside of the cabinet where it mounts?

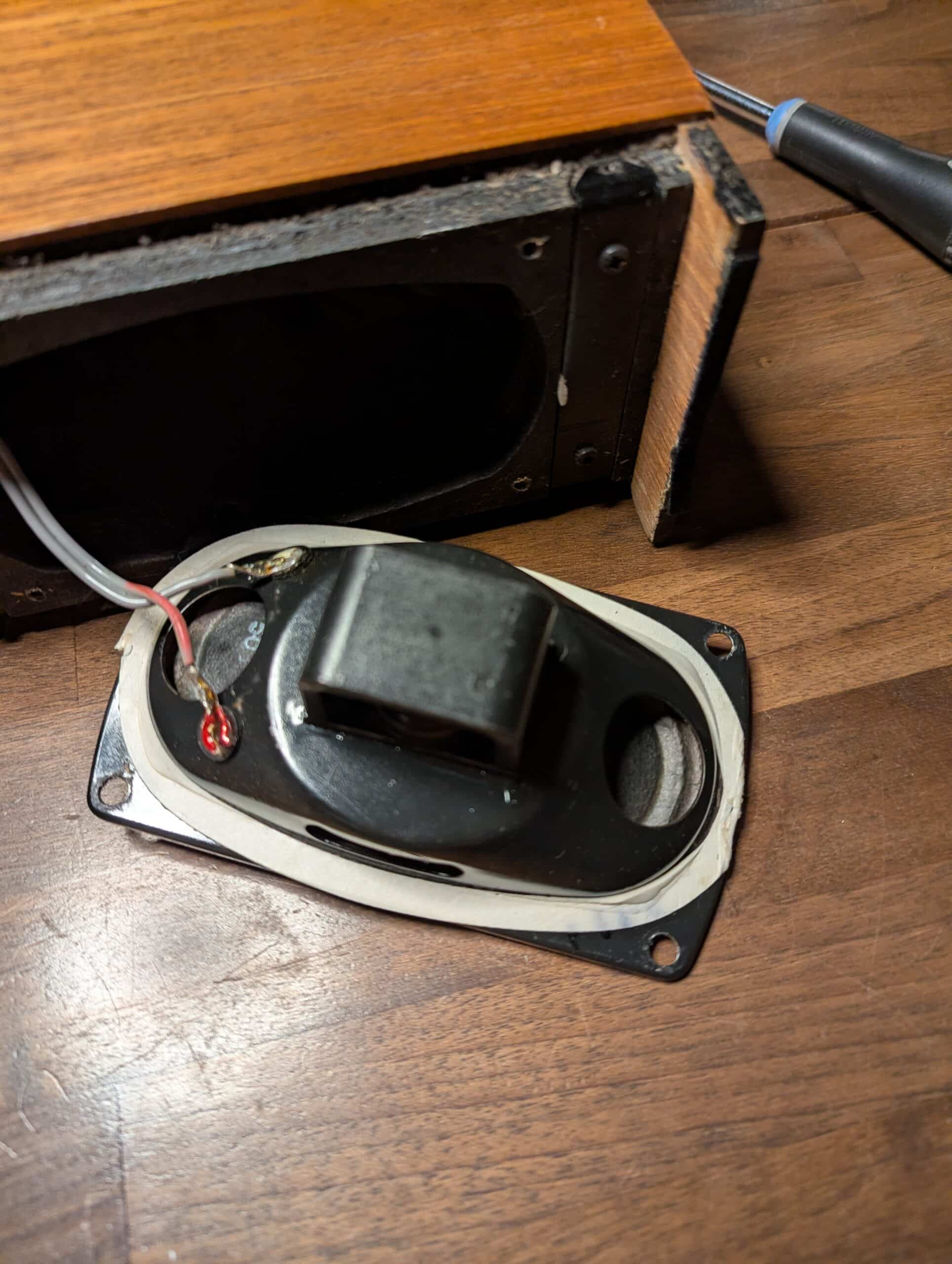

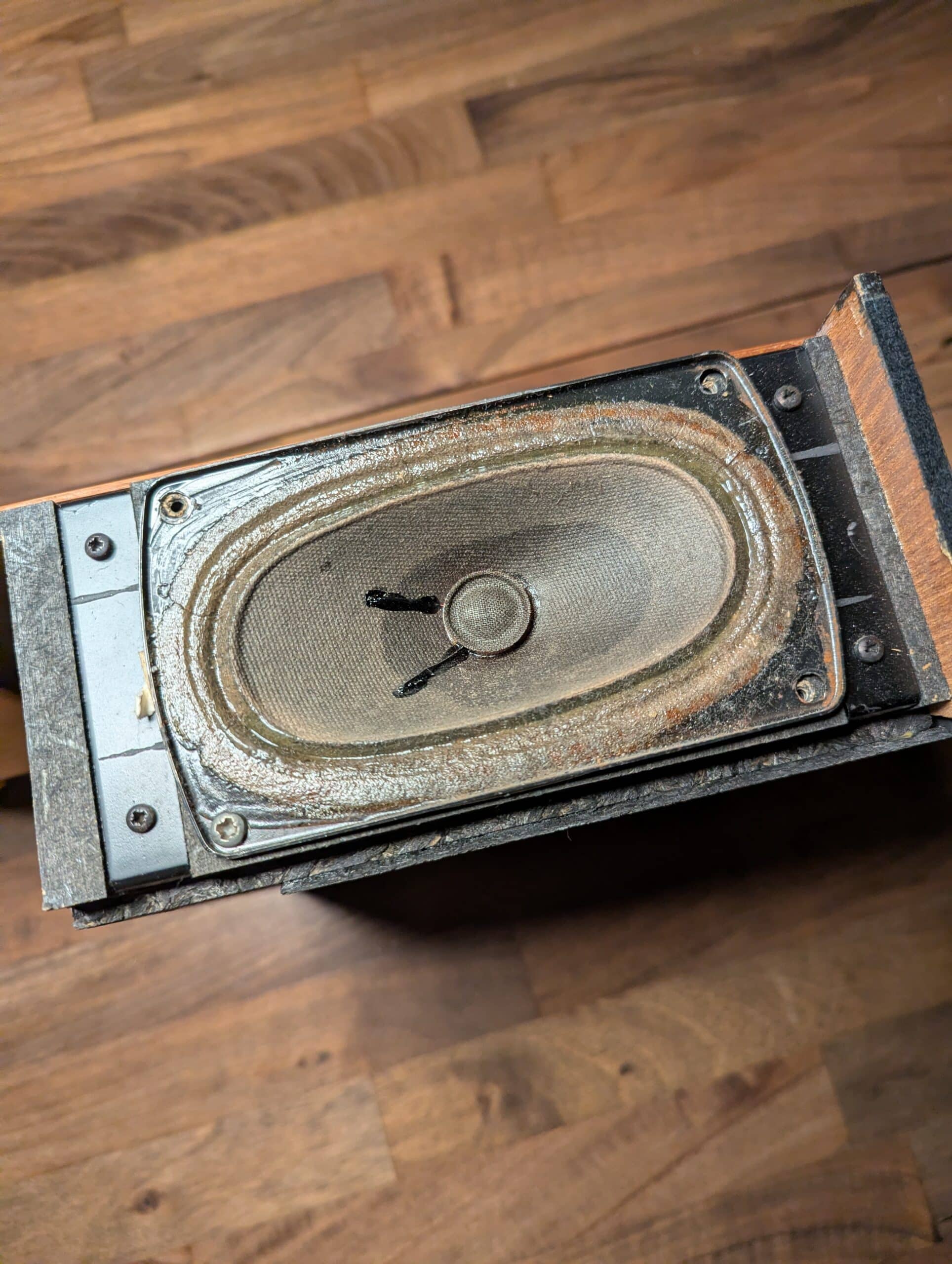

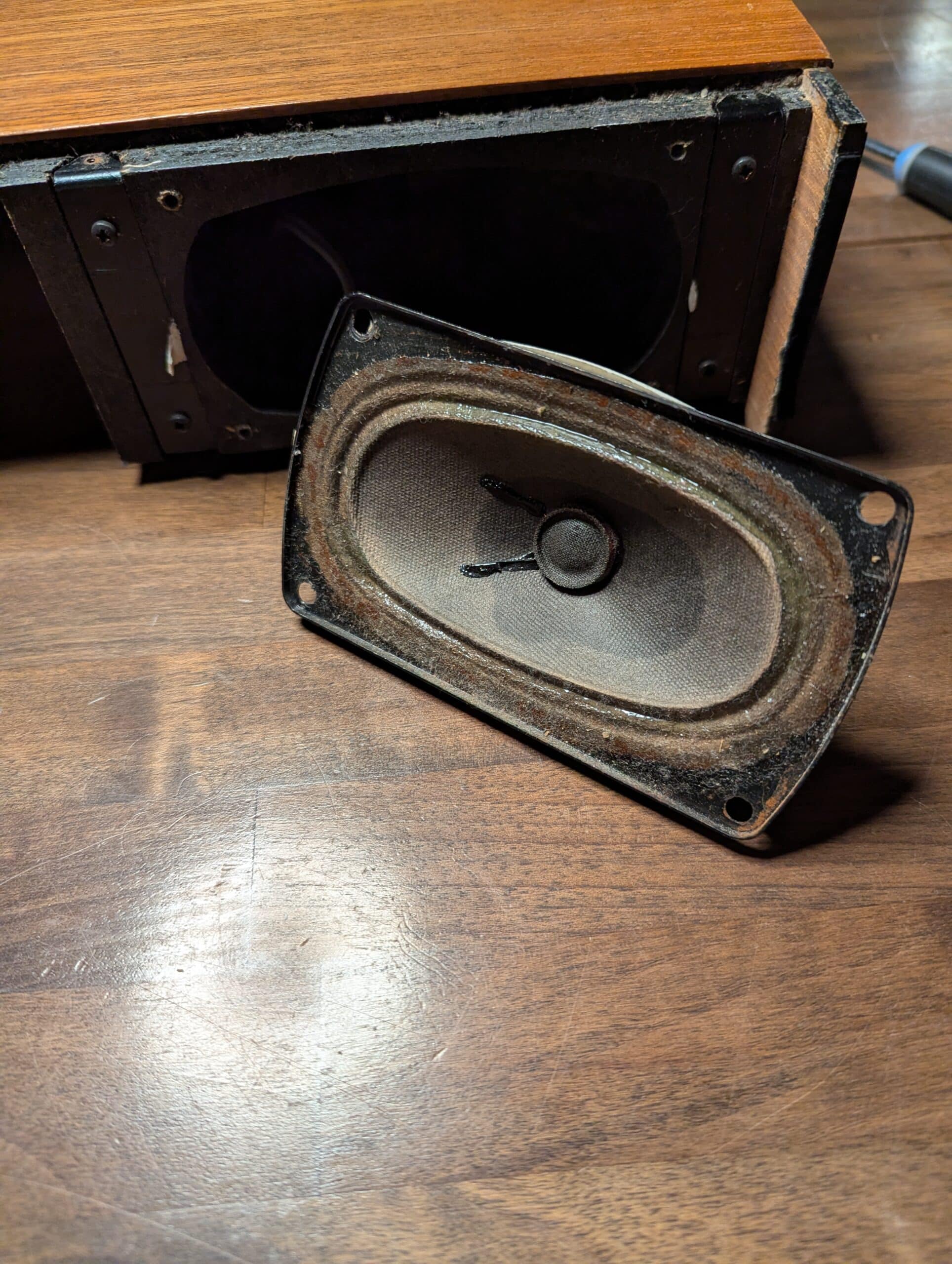

Here are pictures of the speak. It is 13cm wide, 7,5cm height and diagional between upper left and lower right screw are 12,7cm.
Attachments (3)

Location: Denmark

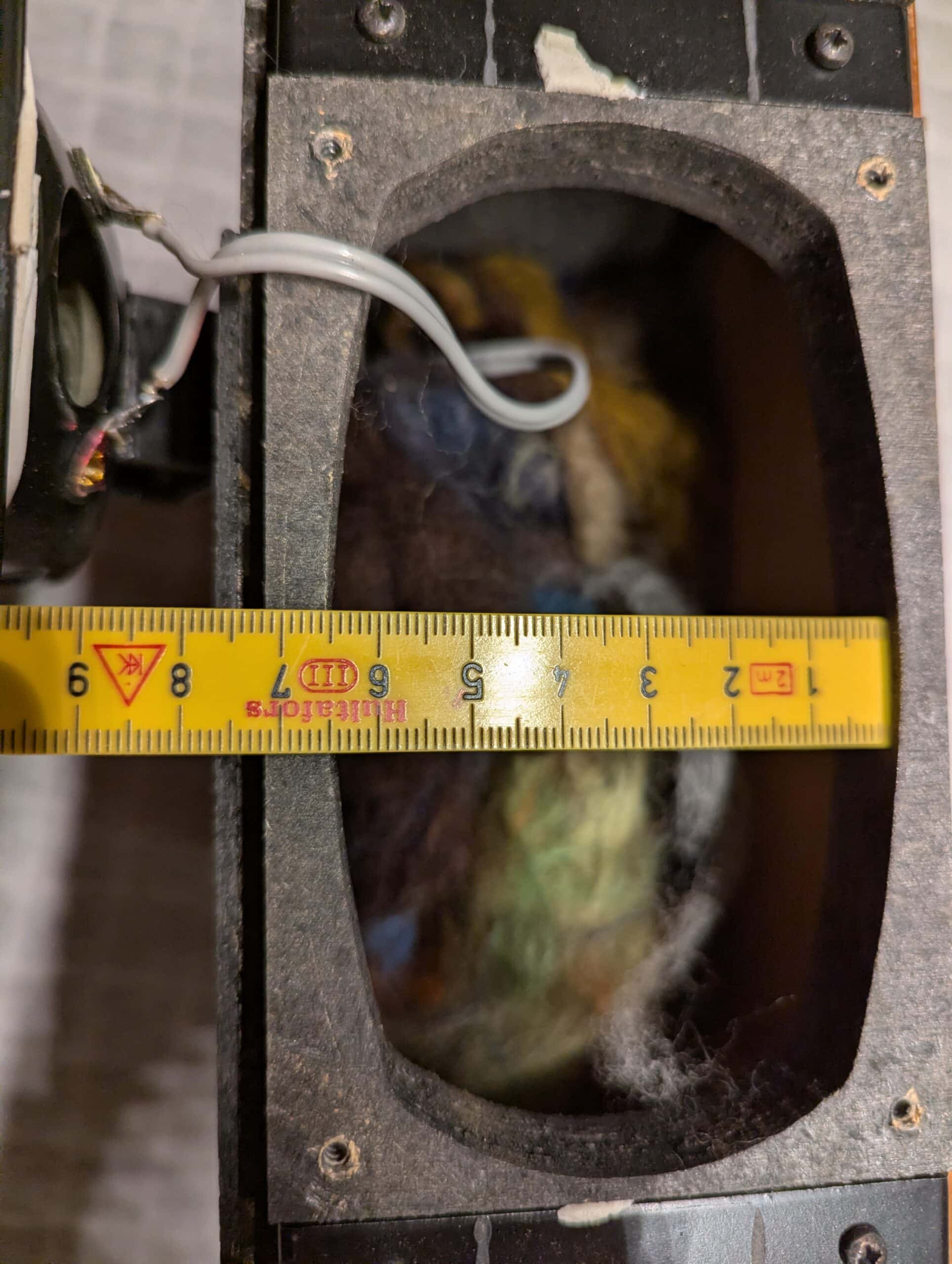

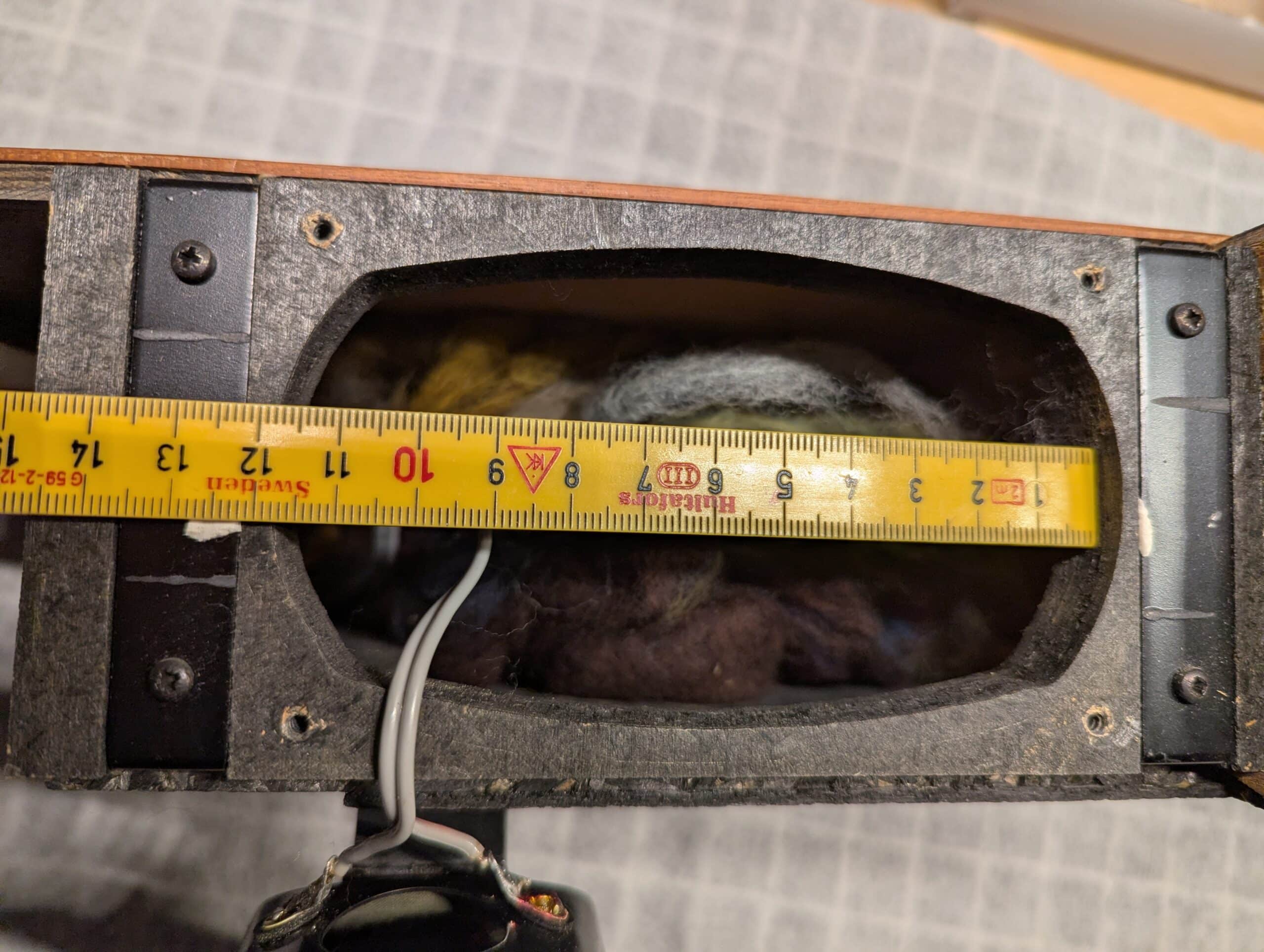

Here are pictures of the hole in enclousure.
Attachments (3)

Location: Denmark
